Parapet Wall Temporary Guardrails
"Wall Grabber™" - The non-penetrating guardrail system built for speed and uncompromising safety. Designed to clamp securely onto parapet walls without surface damage, these adjustable stanchions fit walls up to 12" or 24" wide. Whether you're using lumber or cable, the Ellis Parapet System delivers a rock-solid fall protection barrier that meets OSHA standards without the headache of permanent anchors.
Specifications
Demonstration Video
Ellis Parapet Wall Guardrail Benefits
FAST

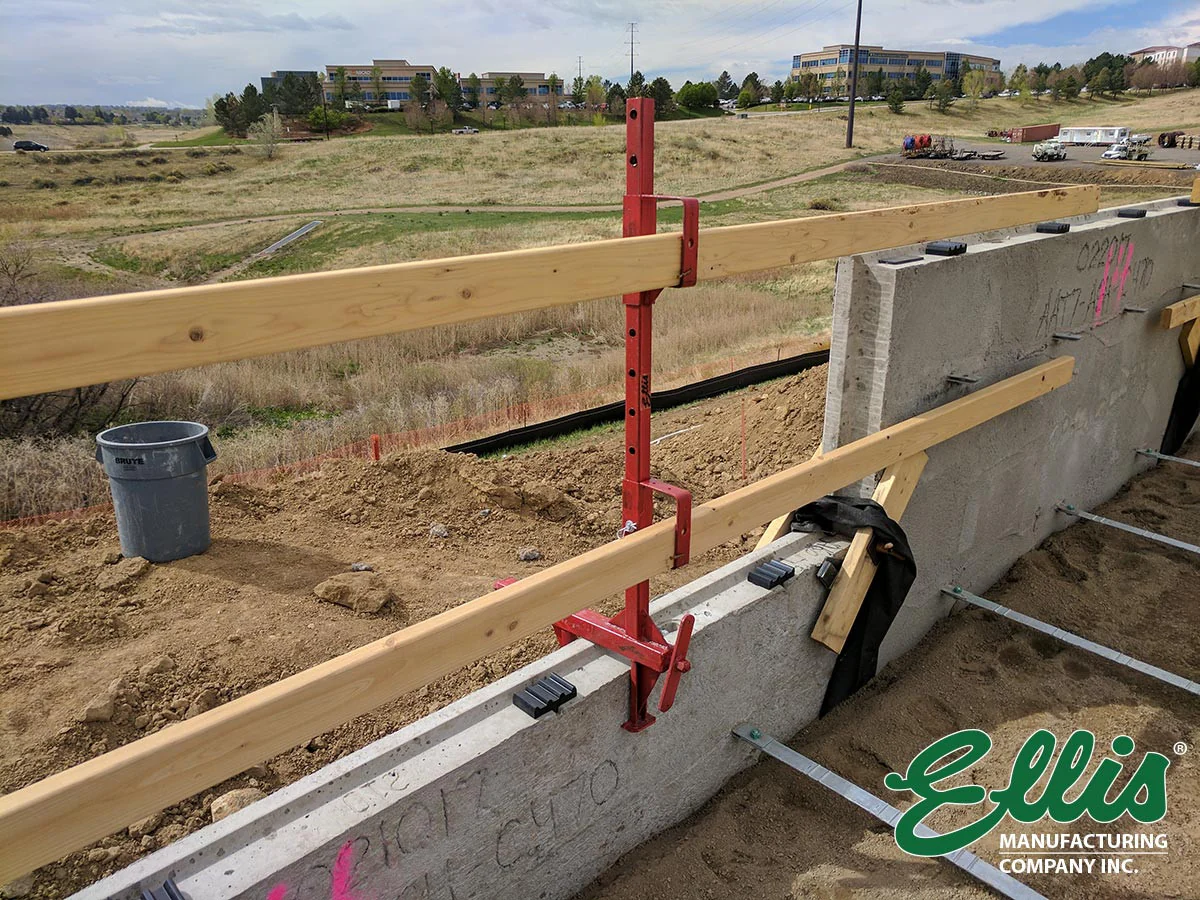

Easily and quickly adjusts with the handle to clamp to the top of walls up to 12" (GRS-P12) or 24" (GRS-P24). Holes provided in handle for quick adjustment with small screw driver. Wrench adjustment is optional. Only 20 ft. Lbs. of torque required to attach to a concrete parapet wall. Pictured right.
STRONG
Constructed with 5/8” Acme Screw inside for firm grip and clamp on to the wall. Will withstand horizontal loads in excess of 250 lbs.
SAFE
Use the Ellis Parapet Wall Guardrail to protect walking/working surfaces in accordance with O.S.H.A. code 1926.502. Manufactured with quality welds and durable steel. Also, to insure railing heights meet OSHA regulations, our Parapet Guardrail has been designed with handrail brackets that are adjustable in 3" increments and can be placed 12" to 45" above the parapet wall. Simply remove the rail bracket clevis pin and slide rail bracket to the appropriate height above the working surface.
AFFORDABLE
Like all Ellis Manufacturing Products, this one is built to last and only requires a minimal investment.

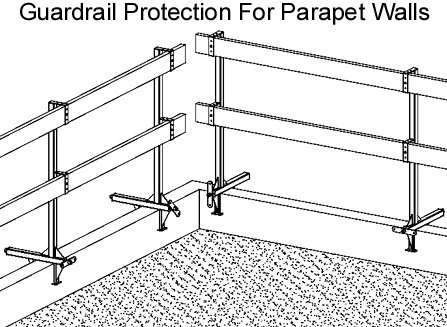

Detailed Product Drawings
User Guide / Load Chart
Original: $205.25
-65%$205.25
$71.84Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
"Wall Grabber™" - The non-penetrating guardrail system built for speed and uncompromising safety. Designed to clamp securely onto parapet walls without surface damage, these adjustable stanchions fit walls up to 12" or 24" wide. Whether you're using lumber or cable, the Ellis Parapet System delivers a rock-solid fall protection barrier that meets OSHA standards without the headache of permanent anchors.
Specifications
Demonstration Video
Ellis Parapet Wall Guardrail Benefits
FAST
Easily and quickly adjusts with the handle to clamp to the top of walls up to 12" (GRS-P12) or 24" (GRS-P24). Holes provided in handle for quick adjustment with small screw driver. Wrench adjustment is optional. Only 20 ft. Lbs. of torque required to attach to a concrete parapet wall. Pictured right.
STRONG
Constructed with 5/8” Acme Screw inside for firm grip and clamp on to the wall. Will withstand horizontal loads in excess of 250 lbs.
SAFE
Use the Ellis Parapet Wall Guardrail to protect walking/working surfaces in accordance with O.S.H.A. code 1926.502. Manufactured with quality welds and durable steel. Also, to insure railing heights meet OSHA regulations, our Parapet Guardrail has been designed with handrail brackets that are adjustable in 3" increments and can be placed 12" to 45" above the parapet wall. Simply remove the rail bracket clevis pin and slide rail bracket to the appropriate height above the working surface.
AFFORDABLE
Like all Ellis Manufacturing Products, this one is built to last and only requires a minimal investment.
